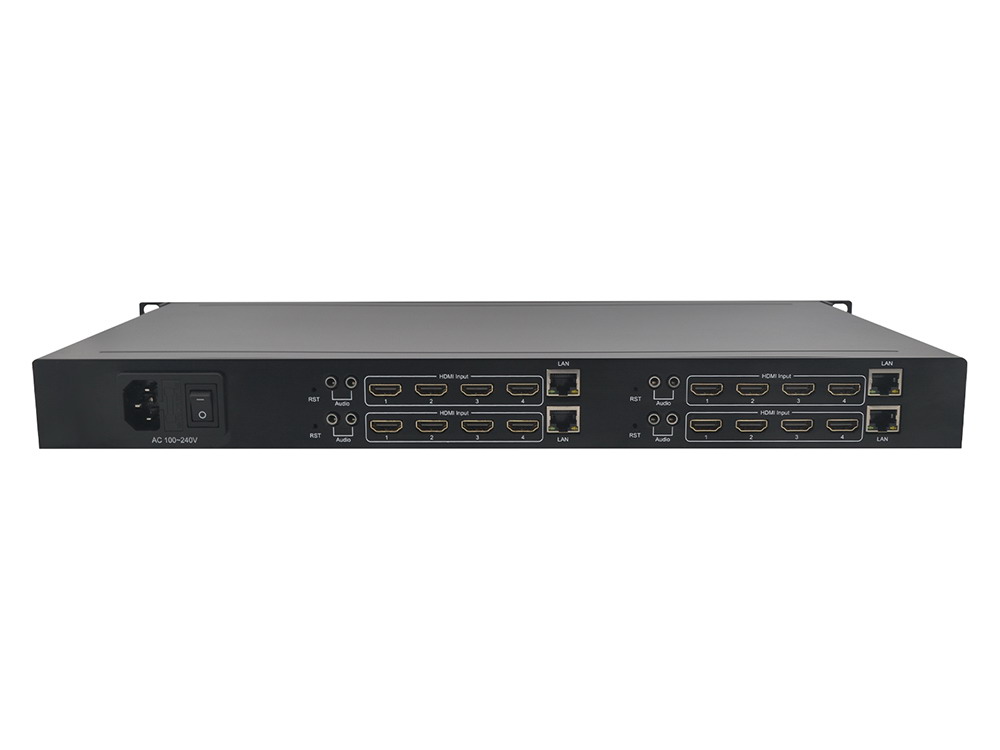

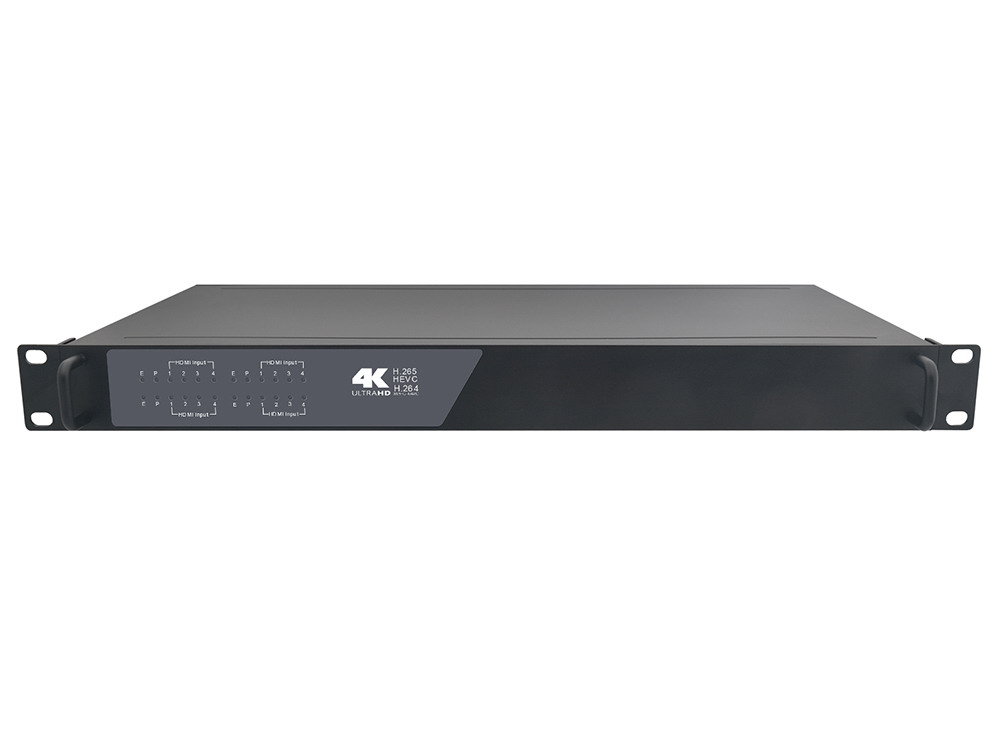

OPR-NH401PHU 1U Rack-mounted 16 Channels H.265 HDMI IP Streaming Encoder
- Description
- Specs
- Downloads
OPR-NH401PHU 1U Rack-mounted 16 Channels H.265 HDMI IP Streaming Encoder - which supports 1-4pcs card install, 4/8/12/16 channels HDMI input, max resolution at 3840x2160@30fps, and output stream resolution up to 3840x2160@30fps. This Encoder works with HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF. Also the Encoder works with online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.
Product features
1. Adopts professional encoding chip, embedded HiLinux System, high stability and efficiency.
2. Friendly Web Control UI, default IP is 192.168.1.168.
3. Support HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF.
4. Support output Multi RTMP(S) (Main stream & Sub stream) to different Media Streaming Server.
5. Provide custom resolutions, Main Stream Preset Resolutions - 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270, etc.
6. Support Text and image insert as Stream Logo for Main stream & Sub stream.
7. Support TF/USB Recording.
8. Output Stream bitrate adjustable.
9. Support External Analog audio input.
10. Support Audio digital gain.
11. Support firmware upgrade.
12. Support remote control via router port forward.
| Interfaces | |
| Video Input | 1-4pcs NH401PH card install, 4/8/12/16 HDMI input, each card’s HDMI 1 & 2 Max supports 3840*2160@30FPS, HDMI 3 & 4 Max @1080P 60FPS |
| Audio Input | HDMI embed audio & 2* Analog audio Line-in |
| Ethernet | 1000Mbps, RJ-45 |
| WiFi | Option 2.4G & 5.8G |
| Video Encoding | |
| Video Format | H.264/AVC High/Main/Baseline Profile H.265/HEVC main profile MJPEG/JPEG baseline |
| Video Resolution | support 2 channels 4k@30fps plus 2 channels 1080p@60fps or 4 channel 1920x1080P@60fps |
| Video Bitrate | 0.1~32Mbps |
| Video FPS | 5-60FPS |
| Bitrate Control | VBR/CBR |
| Streaming Protocols | HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) ONVIF |
| Audio Encoding | |
| Audio Format | AAC / AAC+ / AAC++ / MP3 / MP2 / AC3 / Opus / G711 |
| Sample Rates | 44.1kHz/48kHz |
| Bitrate | 12~640kbps |
| System | |
| Control Method | Web based management - IP 192.168.1.168 |
| Language | Chinese-English control interface |
| Firmware | Ethernet software upgrade |
| Working environment | |
| Operating temperature | -10 to 70 deg C |
| Storage temperature | -20 to 80 deg C |
| Relative Humidity | 5% to 90% non-condensing |
| Miscellaneous | |
| Dimension (L× W× H) | 1U 483 (L) *250 (W) *44.5 (H) mm |
| Approx weight | 4.5kgs |
| Power adapter | AC input 100-240V 50/60Hz DC output 12V 8.5A |
