OPR-1600P-4K 3U Rack-mounted UHD H.265 HDMI IP Streaming Encoder
- Description
- Specs
- Downloads

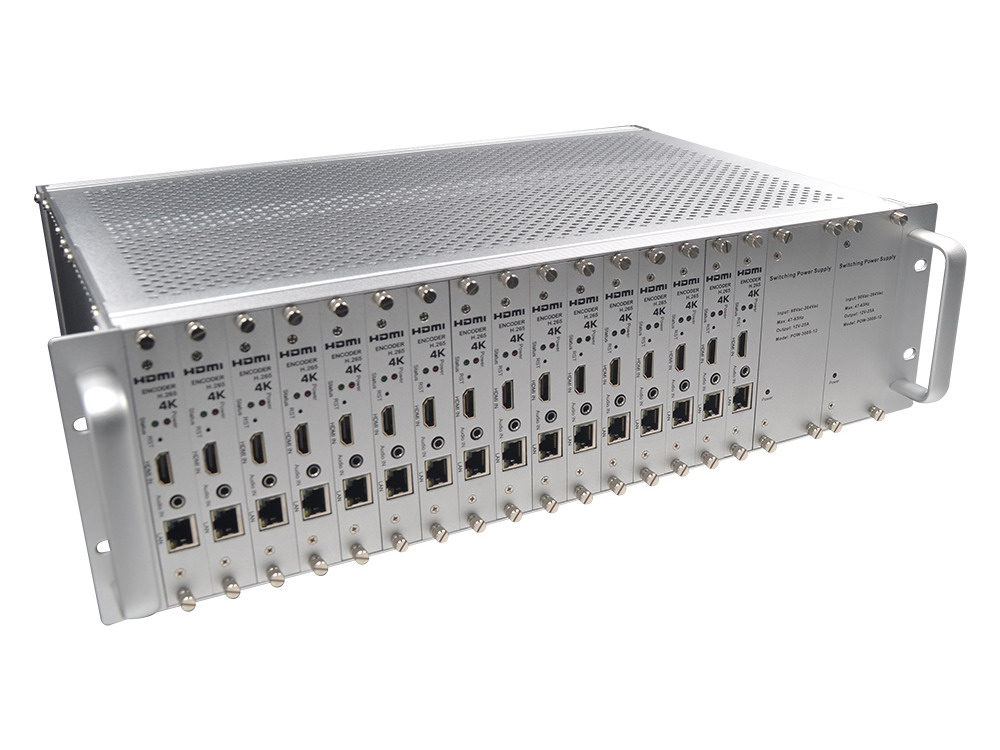

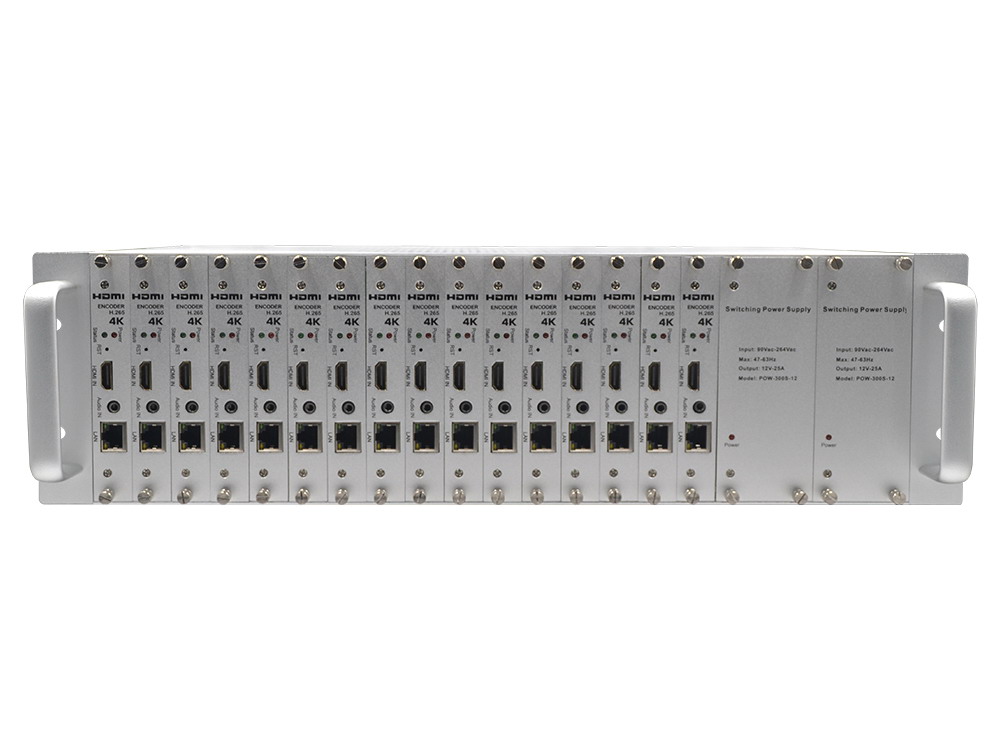

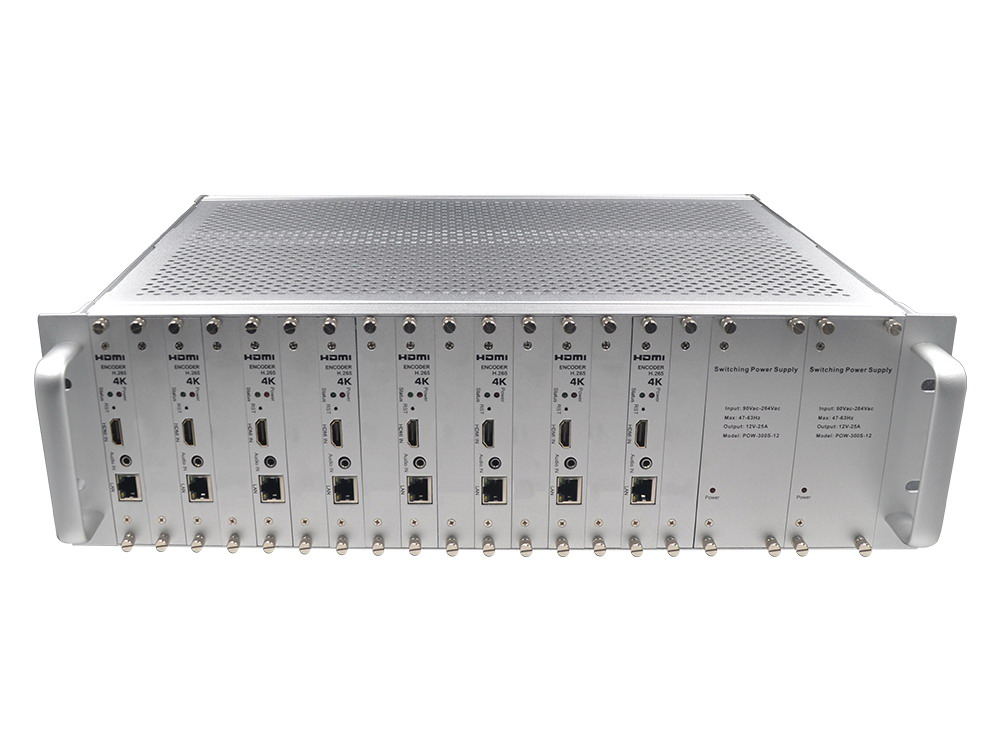

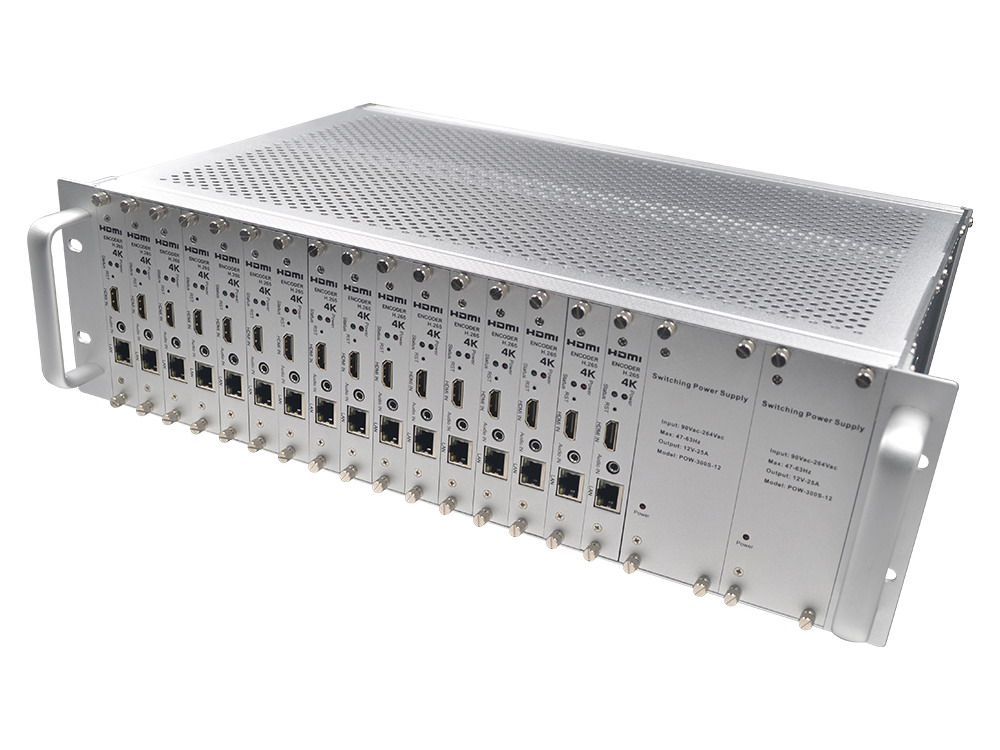

OPR-NH1600P- 3U 4K 16 Channels H265 HDMI IP Streaming Encoder - which supports input HDMI max resolution at 3840x2160@30fps, and output stream resolution up to 3840x2160@30fps. This Encoder works with RTMP/RTMPS / SRT / HTTP / RTSP / UDP / RTP Stream Protocols and ONVIF. Also the Encoder works with online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.
Product features
1. Embedded HiLinux System, stable and effective.
2. Friendly Web Control UI, default IP is 192.168.1.168.
3. RTMP/RTMPS / SRT / HTTP / RTSP / UDP / RTP Stream Protocols and ONVIF.
4. Support output Multi RTMP(S) (Main stream & Sub stream.) to different Media Streaming Server.
5. Main Stream Support output resolution - 3840x2160@30fps, 1080P/720P@60FPS, etc.
6. Support Text and image insert as Stream Logo for Main stream & Sub stream.
7. Output Stream bitrate adjustable.
8. Support External Analog audio input.
9. Support Audio digital gain.
10. Support firmware upgrade.
11. Support remote control via router port forward.
Parameters
| Interfaces | |
| Video Input | 16 * HDMI input, Max support 3840x2160@30fps, 1080P@60fps |
| Audio Input | HDMI embed audio & External Analog audio input |
| Ethernet | RJ-45 |
| Video Encoding | |
| Video Format | H.264/AVC High/Main/Baseline Profile, H.265/HEVC main profile, MJPEG/JPEG baseline |
| Video Resolution | Max support 3840x2160@30fps, 1080P@60fps |
| Video Bitrate | 0.1~32Mbps |
| Video FPS | 5-60FPS |
| Bitrate Control | VBR/CBR |
| Streaming Protocols | RTMP/RTMPS / SRT / HTTP / RTSP / UDP / RTP and ONVIF. |
| Audio Encoding | |
| Audio Format | AAC / AAC+ / AAC++ / MP3 / MP2 / AC3 G711 |
| Sample Rates | 44.1kHz/48kHz |
| Bitrate | 12~640kbps |
| System | |
| Control Method | Web based management - IP 192.168.1.168 |
| Language | Chinese-English control interface |
| Firmware | Ethernet software upgrade |
| Working environment | |
| Operating temperature | -10 to 70 deg C |
| Storage temperature | -20 to 80 deg C |
| Relative Humidity | 5% to 90% non-condensing |
| Miscellaneous | |
| Dimension (L x W x H) | 19" 483 (L) *300 (W) *44.5 (H) mm |
| Approx weight | 6.5kgs |
| Power adapter | AC input 100-240V 50/60Hz DC output 12V 25A |
