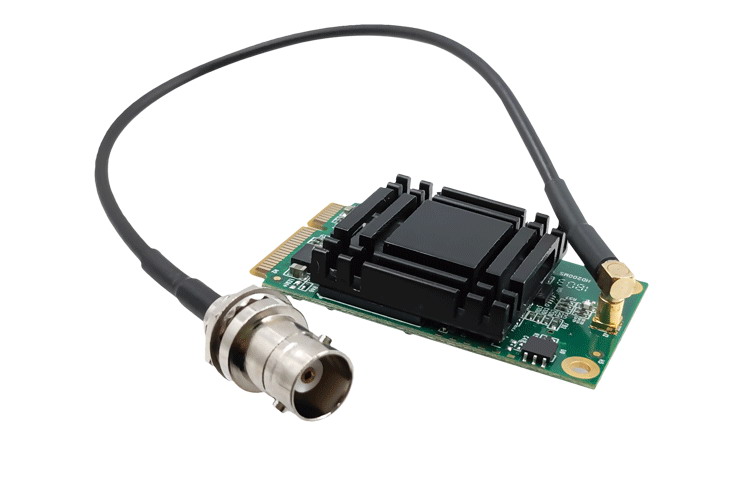

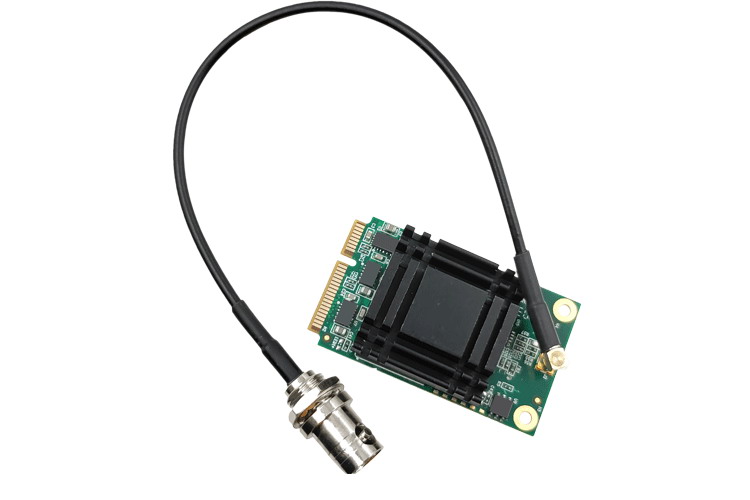

OPR-MH100S Mini PCIe SDI Video Capture Card

Get more information, message us now!
  • Description
  • Specs
  • Downloads

OPR-MH100S
PCI-Express Gen2 X1
BNC - SD/HD/3G SDI Input
1 SDI Video Capture
Windows, Linux OS Supported

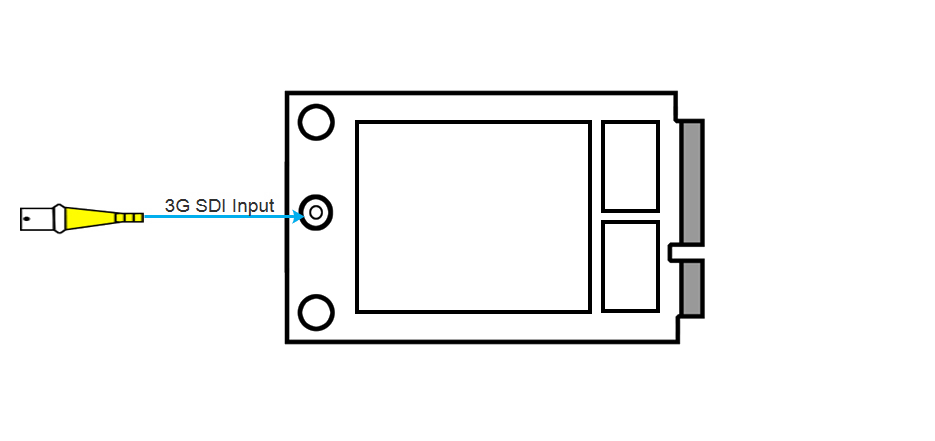

Interface

Connection
Host Interface PCI-Express Gen2 X1
Input Interface BNC - SD/HD/3G  SDI
SDI Specific Features Integrated cable equalizer extending the cable length as follows:
       up to 330m for SD-SDI signals
       up to 190m for HD-SDI signals
       up to 150m for 3G-SDI signals
       Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS standards
       Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Video Processing
Switch of Color Space Hardware Color Switch
De-interlacing Vertical filter de-interlacing; motion-adaptive de-interlacing
Others
OS Support Support the following operating systems, including x86 and x64:
       Windows 7 / 8 /10
       Windows Server 2008 R2
       Linux (Kernel version 2.6.38 and above)
Software Compatibility

VLC
         OBS
         XSplit
         Wirecast
         VidBlaster
         VirtualDub
         Windows  Media Encoder
         Adobe Flash Media Live Encoder
Size(L*H) 30mm*51mm
Power Consumption <= 5W
Operating temperature 0-50℃
Storage temperature -20-70℃
Relative humidity 5%-90%
