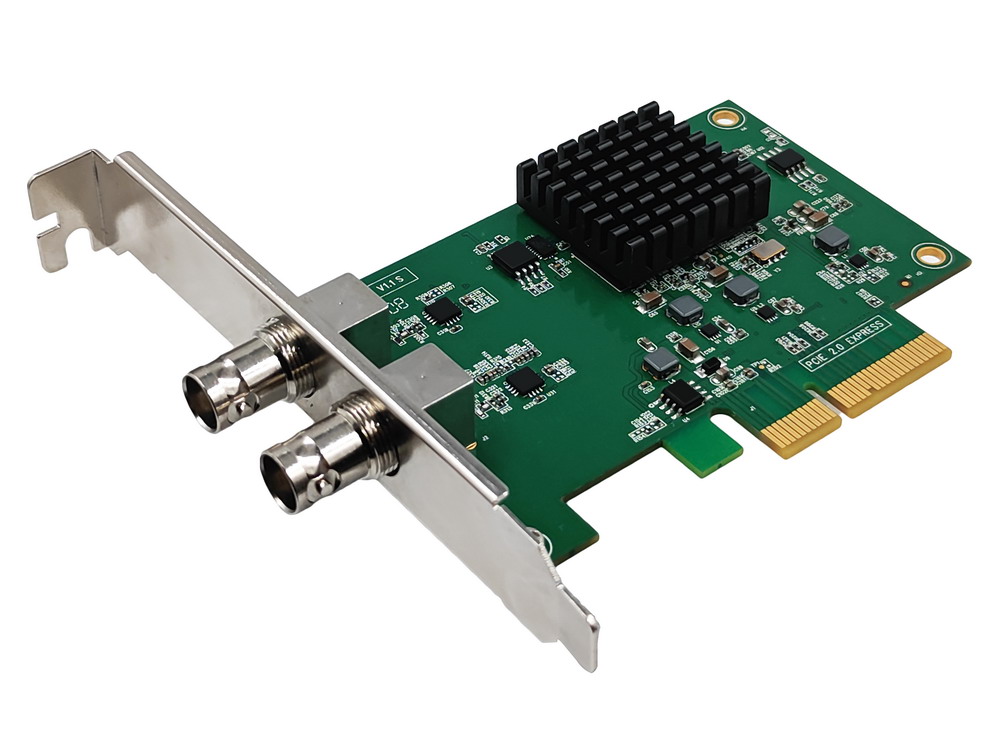

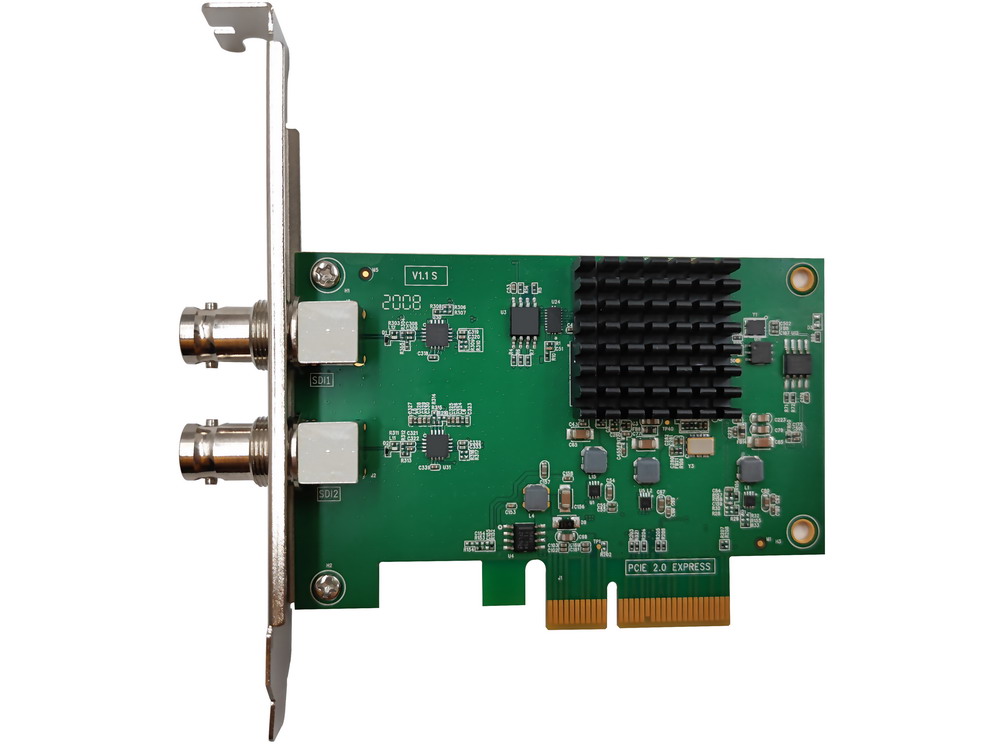

OPR-HD200S Dual SDI Video Capture Card
Get more information, message us now!
- Description
- Specs
- Downloads
OPR-HD200S
PCI-Express Gen2 X4
Dual SDI Video Capture
1080P Input and Capture
Windows, Linux OS Supported

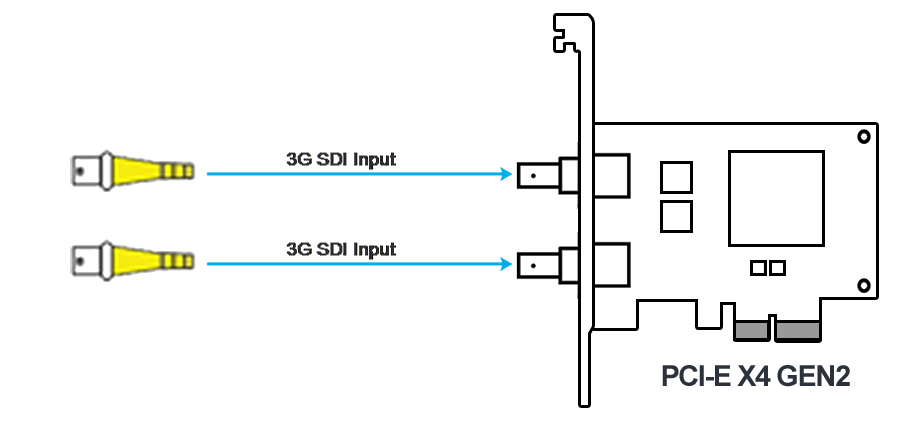

Interface
| Connection | |
| Host Interface | PCI-Express Gen2 X4 |
| Input Interface | BNC - SD/HD/3G SDI |
| SDI Specific Features | Integrated cable equalizer extending the cable length as follows: up to 330m for SD-SDI signals up to 190m for HD-SDI signals up to 150m for 3G-SDI signals Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS standards Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling |
| >Video Processing | |
| Switch of Color Space | Hardware Color Switch |
| De-interlacing | Vertical filter de-interlacing; motion-adaptive de-interlacing |
| Others | |
| OS Support | Support the following operating systems, including x86 and x64: Windows 7 / 8 /10 Windows Server 2008 R2 Linux (Kernel version 2.6.38 and above) |
| Software Compatibility | VLC OBS XSplit Wirecast VidBlaster VirtualDub Windows Media Encoder Adobe Flash Media Live Encoder |
| Size(L*H) | 98.1mm*68mm |
| Power Consumption | <= 5W |
| Operating temperature | 0-50℃ |
| Storage temperature | -20-70℃ |
| Relative humidity | 5%-90% |
