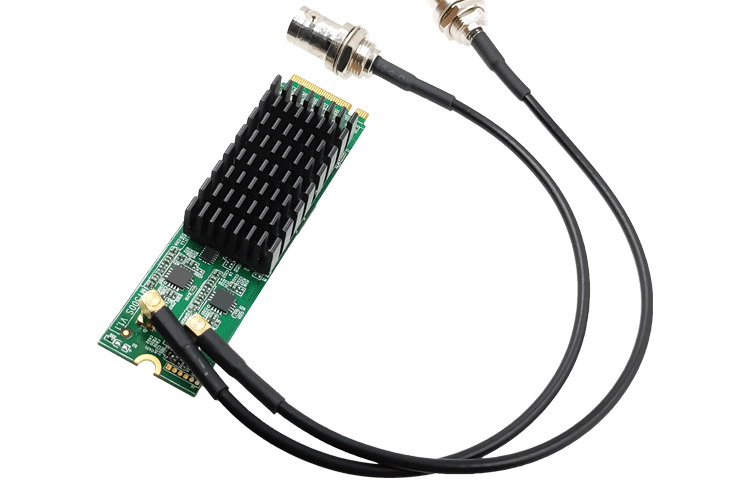

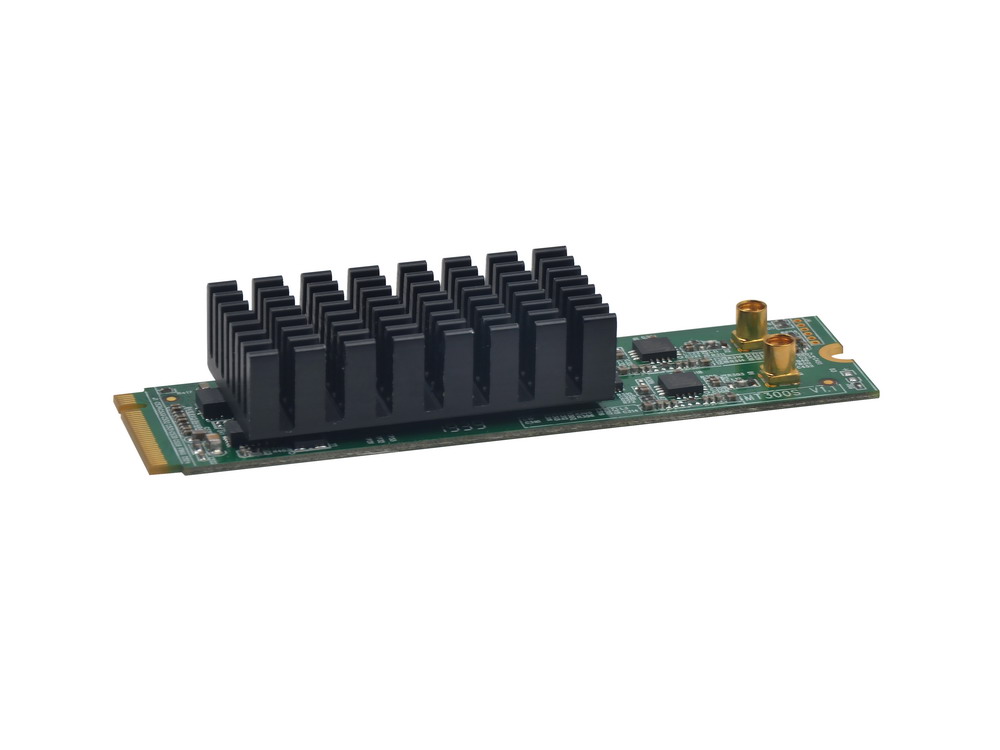

OPR-MT200S M2 Dual SDI Video Capture Card
- Description
- Specs
- Downloads
OPR-MT200S M2 Dual SDI Video Capture Card adopts high-speed M2-M X2 interface, which can simultaneously capture dual 1080p@60hz SDI without losing frames. Support 2 SDI inputs, its maximum resolution at 1920x1080@60fps, support real 10Bit, real-time HD full-resolution, HD uncompressed video capture, support broadcast-level capture and editing, real-time monitoring and capture various HD cameras.
SDK available - Visual Basic, Visual C++, Delphi, C#, Python, Labview and other programming languages to develop through the SDK.
Provide complete Labview VI functions and test demo programs to help customers to develop LABVIEW programs.
Provide detailed call instructions for calling sample program source programs and functions to help customers to develop their own application systems.
Provide technical support, and Customized SDK according to customer requirements.

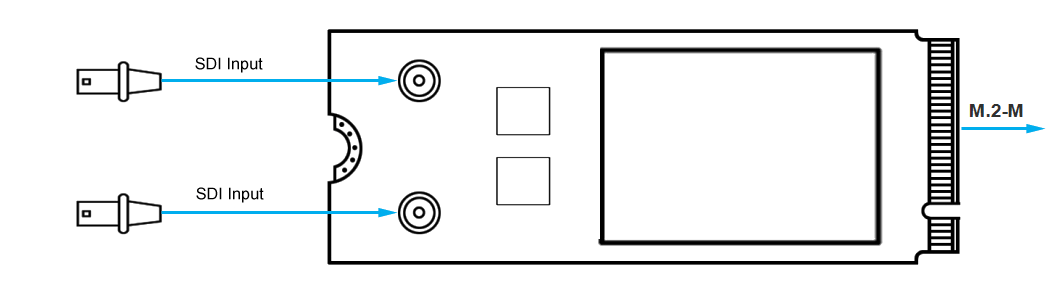

Interface
| Connection | |
| Host Interface | M2.M (PCI-Express Gen2 X2) |
| Input Interface | 2x MMCX SD/HD/3G SDI |
| SDI Specific Features | Integrated cable equalizer extending the cable length as follows: up to 330m for SD-SDI signals up to 190m for HD-SDI signals up to 150m for 3G-SDI signals Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS standards Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling |
| Video Processing | |
| Switch of Color Space | Hardware Color Switch |
| De-interlacing | Vertical filter de-interlacing; motion-adaptive de-interlacing |
| Others | |
| OS Support | Support the following operating systems, including x86 and x64: Windows 7 / 8 /10 Windows Server 2008 R2 Linux (Kernel version 2.6.38 and above) |
| Software Compatibility | VLC OBS XSplit Wirecast VidBlaster VirtualDub Windows Media Encoder Adobe Flash Media Live Encoder |
| Size(W*L*H) | 22mm*81mm*14.3mm |
| Power Consumption | <= 5W |
| Operating temperature | 0-50℃ |
| Storage temperature | -20-70℃ |
| Relative humidity | 5%-90% |
