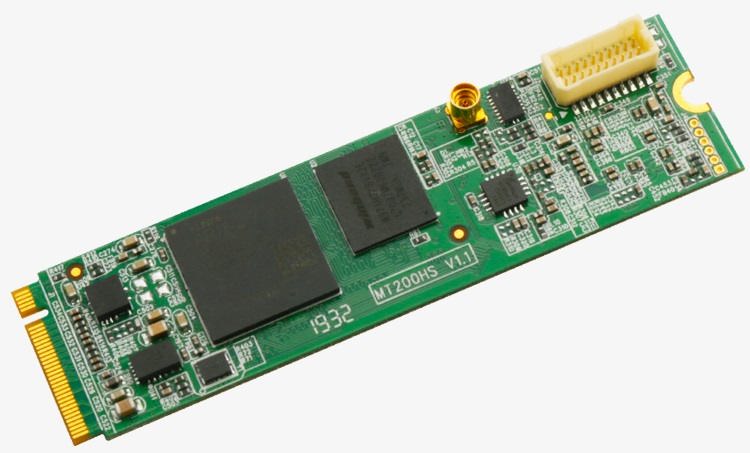

OPR-MT200HS M2 HDMI SDI Video Capture Card
- Description
- Specs
- Downloads
OPR-MT200HS M2 HDMI & SDI Video Capture Card adopts high-speed M2-M X2 interface, which can simultaneously capture HDMI and SDI without losing frames. Support 2 HD inputs, its maximum resolution at 1920x1080@60fps, support real 10Bit, real-time HD full-resolution, HD uncompressed video capture, support broadcast-level capture and editing, real-time monitoring and capture various HD cameras.
SDK available - Visual Basic, Visual C++, Delphi, C#, Python, Labview and other programming languages to develop through the SDK.
Provide complete Labview VI functions and test demo programs to help customers to develop LABVIEW programs.
Provide detailed call instructions for calling sample program source programs and functions to help customers to develop their own application systems.
Provide technical support, and Customized SDK according to customer requirements.

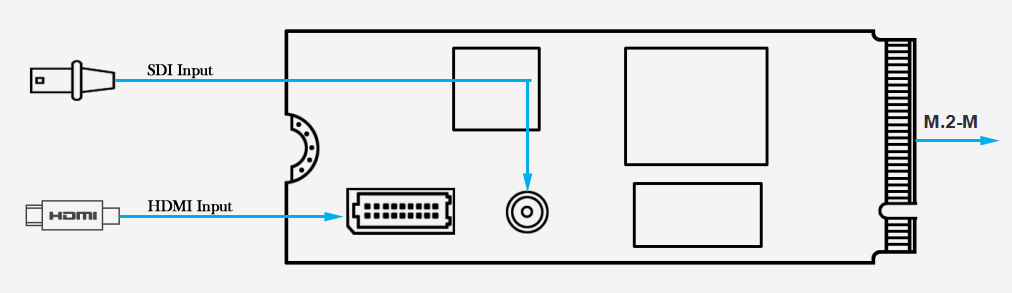

Interface

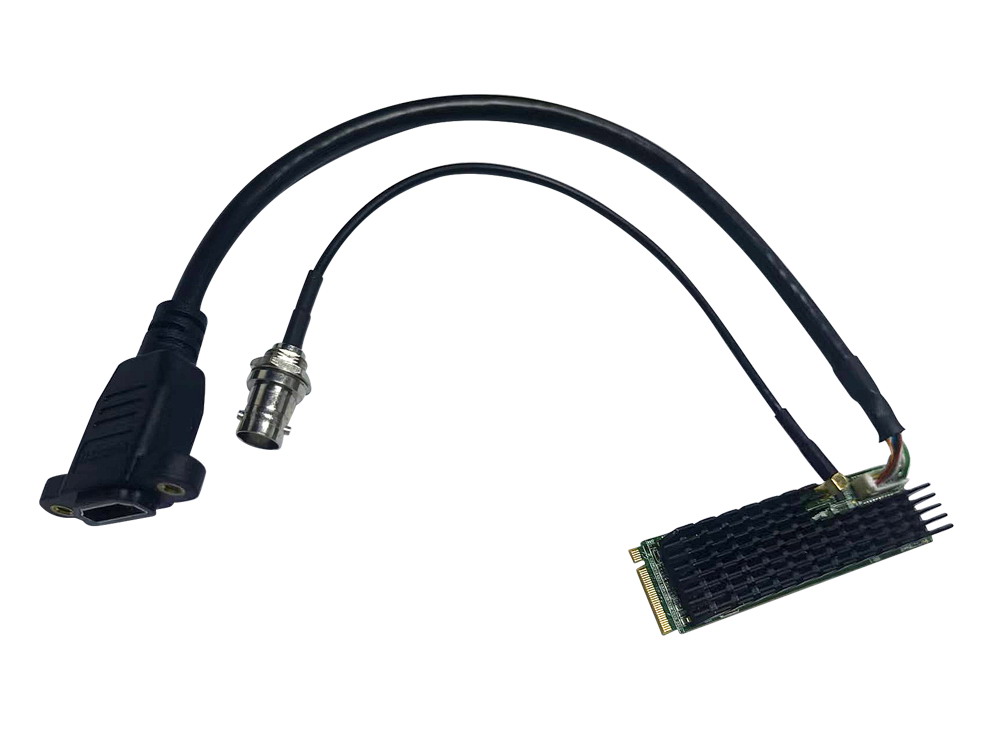

| Input Interface | 1x JST SHD 20-Pin socket 1x MMCX SD/HD/3G SDI |
|---|---|
| Host Interface | M.2 2280 Type M (PCIe Gen2 x2) |
| Video ADC | 12BIT ADC |
| DMA | up to 1GB/S |
|
SDI Inpu |
SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS RGB 4:4:4，YCbCr 4:4:4，YCbCr 4:2:2 |
| HDMI input resolution | 640x480p(60/72/75/8HZ) /800x600p(60/72/75/85HZ) 1024x768p(70/75/85HZ) /1280x768p(60/75/85HZ) 1280x960p(60//85HZ) /1280x1024p(60/75/85HZ) 1600x1024p60 /1600x1200p60 /1680x1050p60 /1920x1080p60 /1920x1200p60 /1152x870p75 /1024x576p60 /1280x720p60 /1360x768p60/ 1440x788p60 /1440x960p72 1440x1050p60/1152x864p75 |
| Video Capture Formats | YUY2, RGB24 |
| Supported Software | VLC OBS xSplit VidBlaster Wirecast VirtualDub, Microsoft Media Encoder, Adobe Flash Media Encoder Any other DirectShow/V4L2 encoding/streaming software |
| Supported OS | WINXP/Windows /7/8/10/2008/2008 R2 Linux（V4L2 Ubuntu 1204 and above, ARM(Nvidia TX2) |
| Size(W*L*H) | 22mm*81mm*14.3mm |
| Power Consumption | Max current at 3.3V: ~ 1.8 A Max power consumption: ~ 4.5W |
| Working Environment | Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |
