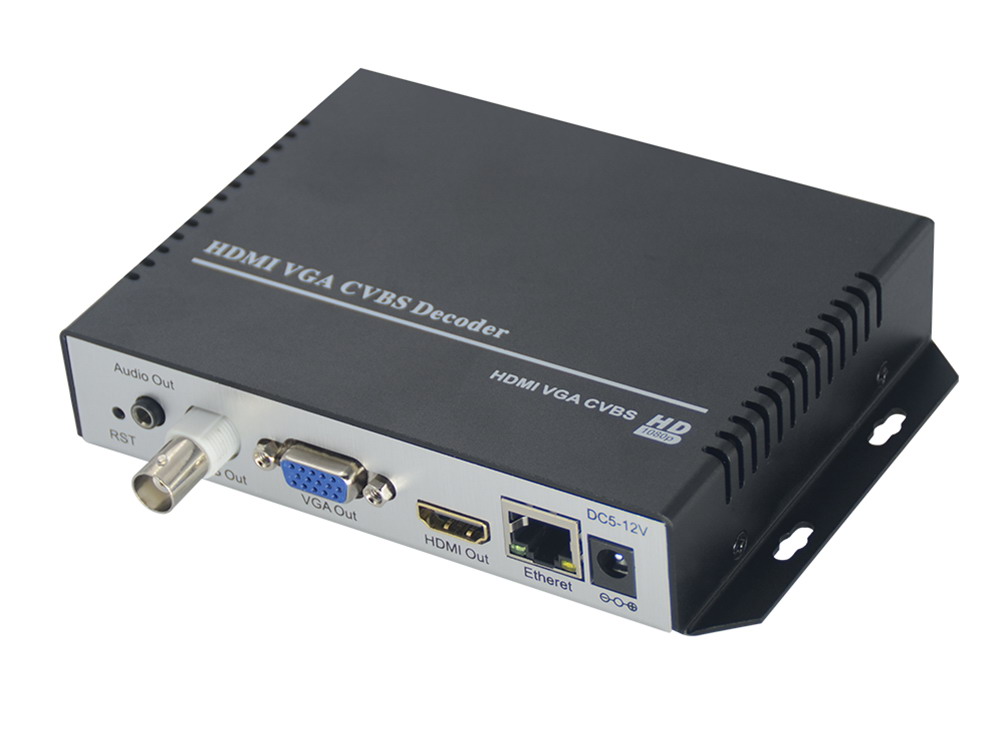

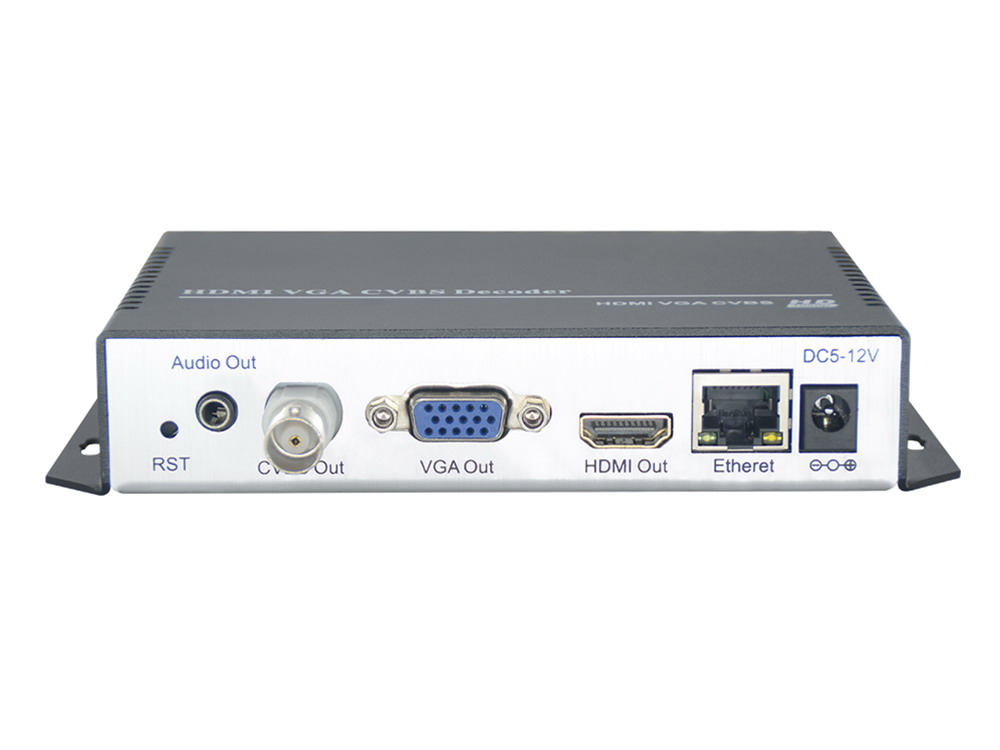

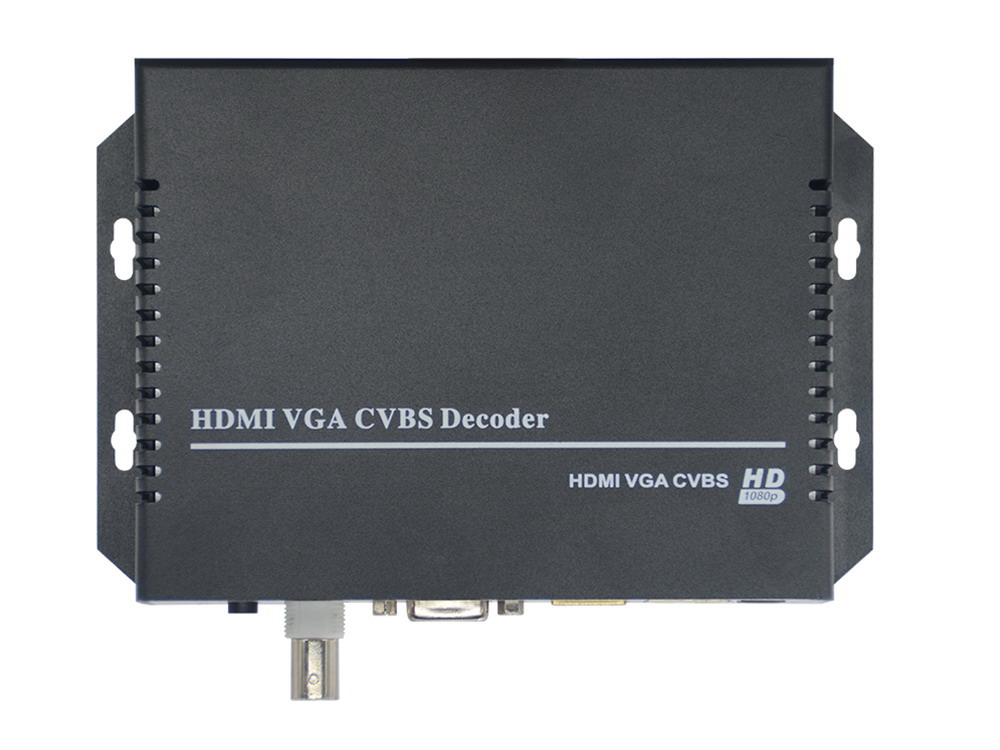

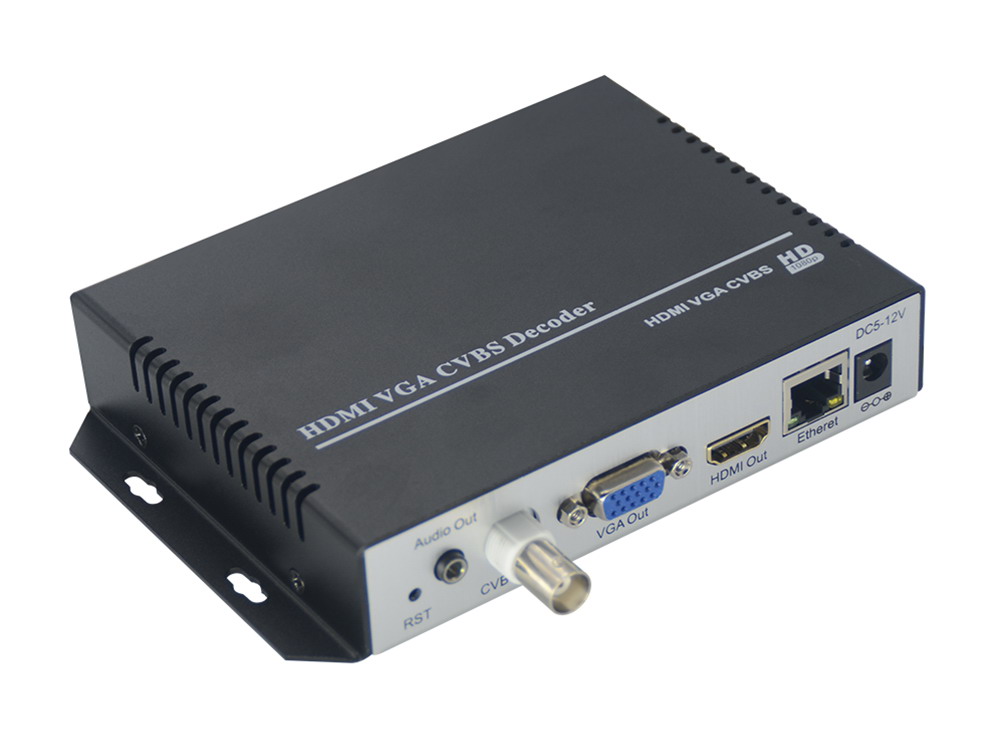

OPR-NH200PD H.265 4K HDMI VGA CVBS Video Decoder
- Description
- Specs
- Downloads
OPR-NH200PD H.265 4K HDMI VGA CVBS Video Decoder - with 4K30-HDMI VGA CVBS video & audio output, supports H.265/H.264 IP Stream (SPTS, MPTS) decoding by input SRT / HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) TS or NDI etc.
With high integration and cost-effective design, this device widely used in variety of field, such as Multimedia Distribution, Advertisement Display, Digital Signage, CCTV, Long Distance Video transmit (with our encoder), etc.
Product features
1. Embedded HiLinux System, stable and effective, 7 x 24h working time.
2. Friendly Web Control UI, default IP is 192.168.1.169.
3. Support SRT / HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) streaming decoding.
4. Support output resolution - 3840x2160@30fps, 1080P/1080I/720P@60FPS, etc.
5. Support Text and image insert as OSD output.
6. With English control panel & language customizable.
7. Support H.265/H.264 baseline /main /high profile decoding.
8. Support firmware upgrade.
9. Support remote control via router port forward.
Our Services
1. 1-Year Warranty.
2. Online, remote help.
3. Encoder Function customizes.
4. OEM & ODM welcomed.
Application
1. Long distance video transfer.
2. Internet TV (IPTV) HD capture system
3. Internet video conference front-end capture
4. Digital signage HD streaming server
5. Teaching broadcast
6. Network monitoring system platform front-end capture
| Interfaces | |
| HDMI Output | 3840*2160P@30/ 1440P@30/ 1080P@60/ 1080I@60/ 1080P@50/ 1080I@50/ 1080P30/ 1080P25/ 720P60/ 720P50/ 576P50/ 480P60 fps |
| VGA Output |
1080P@60/ 1080I@60/ 1080P@50/ 1080I@50/ 1080P30/ 1080P25/ 720P60/ 720P50/ 576P50/ 480P60 fps |
| CVBS Output | PAL 720*576/ 50i & NTSC 720*480/ 60i |
| Audio Output | HDMI embed audio & External Analog audio |
| Ethernet | 1000Mbps, RJ-45 |
| WiFi | Option 2.4G & 5.8G |
| Video Decoding | |
| Video Format | H.264/ AVC High/ Main/ Baseline Profile H.265/ HEVC main profile MJPEG/ JPEG baseline |
| Video Resolution | Max support 3840x2160@30fps, 1080P@60fps |
| Video Bitrate | 0.1~32Mbps |
| Video FPS | 1-60 for 1080P and below, 4K@30fps |
| Streaming Protocols | SRT / HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/ RTP (Unicast/ Multicast) ONVIF, NDI |
| Audio decoding | |
| Audio Format | AAC/ AAC+/ AAC++/ MP3/ MP2/ AC3 G711 |
| Sample Rates | 8000/ 11250/ 22500/ 44100/ 48000Hz |
| Audio Channels | L/ R Stereo |
| System | |
| Control Method | Web based management - IP 192.168.1.169 |
| Language | Chinese-English control interface |
| Firmware | Ethernet software upgrade |
| Working environment | |
| Operating temperature | -10 to 70 deg C |
| Storage temperature | -20 to 80 deg C |
| Relative Humidity | 5% to 90% non-condensing |
| Miscellaneous | |
| Dimension (L x W x H) | 155 (L) *120 (W) *30 (H) mm 1U 483 (L) *250 (W) *44.5 (H) mm |
| Approx weight | 4.5kgs |
| Power adapter | AC input 100-240V 50/ 60Hz DC output 12V 8.5A |
