OPR-NH100P 1 Channel H.265 HDMI IP Streaming Encoder
- Description
- Specs
- Downloads

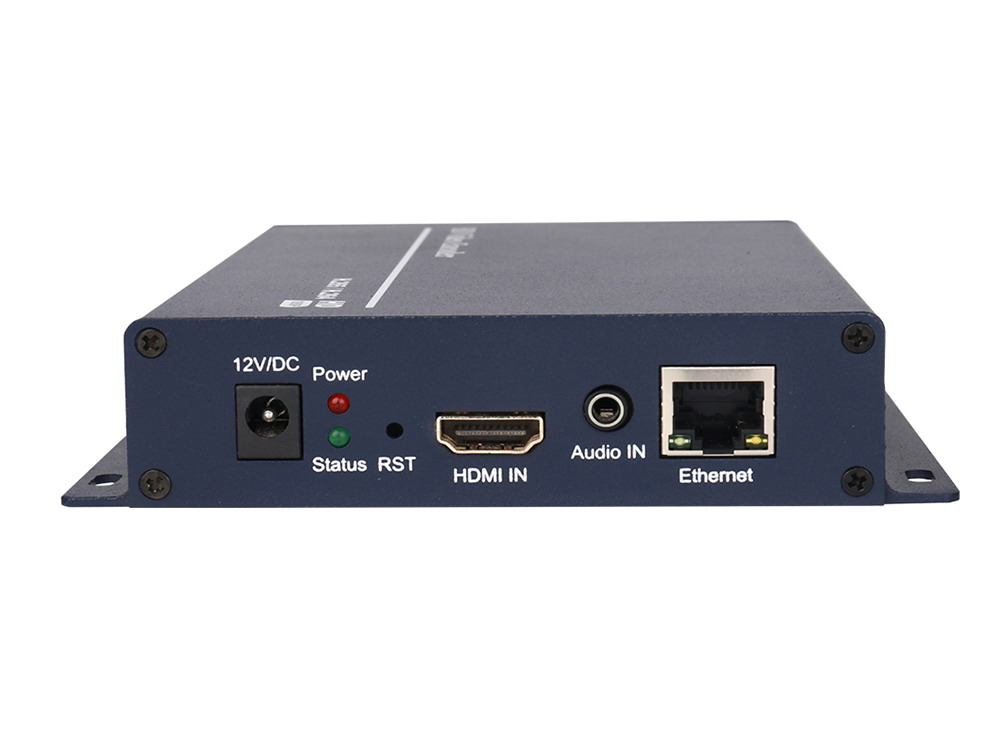

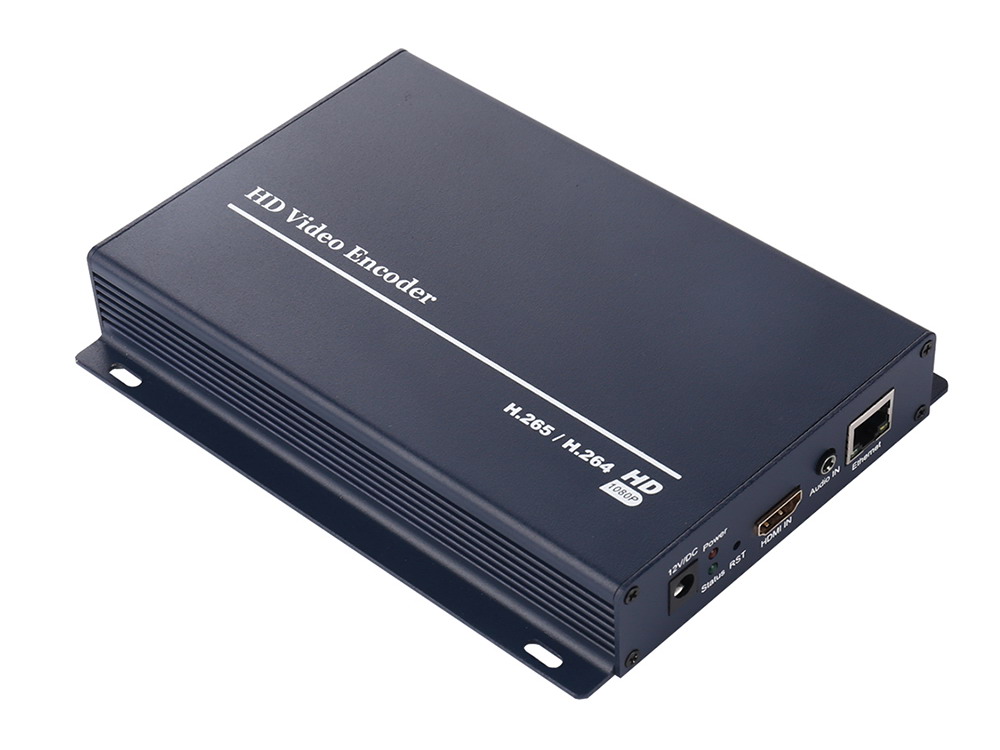

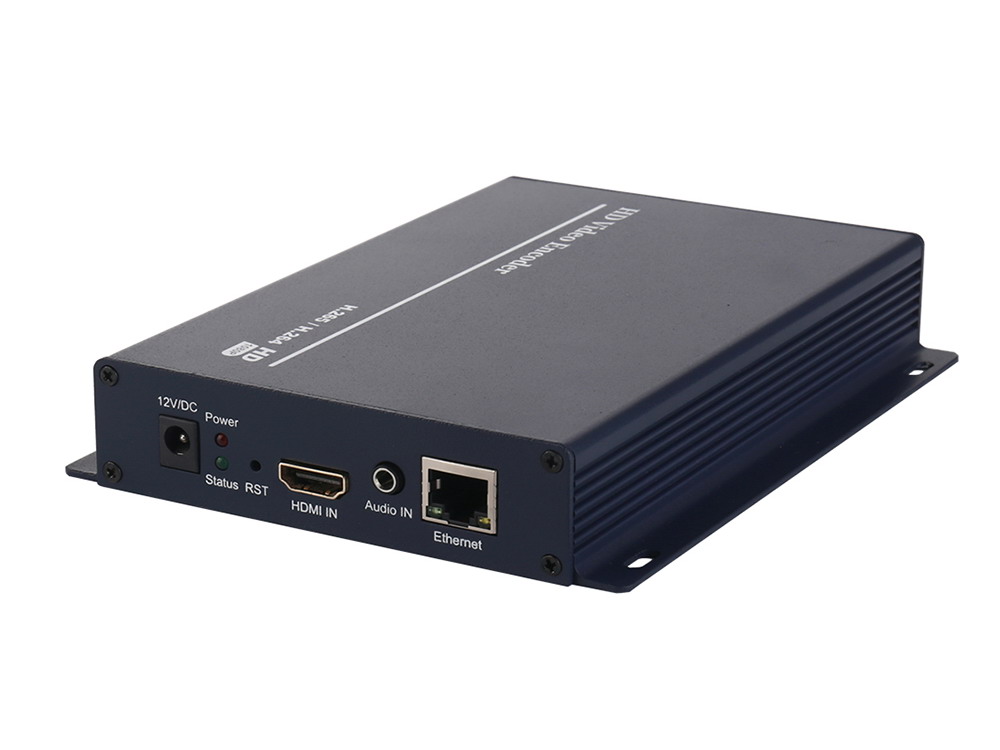

OPR-NH100P 1 Channel H.265 HDMI IP Streaming Encoder - HDMI Video Encoder - It is a HDMI audio & video hevc encoder with powerful functionality, which supports input HDMI max resolution at 1920x1200, 1920x1080@60fps, and output stream resolution to 1920x1200@60fps,1080p, etc. This live streaming encoder works with HTTP / SRT / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF. Also the Encoder works with online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.
Product features
1. Adopts professional encoding chip, embedded Linux System, high stability and efficiency.
2. Friendly Web Control UI, default IP is 192.168.1.168.
3. Support HTTP/HTTPS / SRT / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF. More information about https video encoder, click here.
4. Support output Multi RTMP(S) (Main stream & Sub stream.) to different Media Live Streaming Server.
5. Provide custom resolutions, Main Stream Preset Resolutions - 1920x1200, 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270, etc.
6. Support Text and png graphics as Stream Logo for Main stream & Sub stream.
7. Automatic detect the input video signals, output stream will show no signals when input signals interrupted.
8. Output Stream bitrate adjustable.
9. Support External Analog audio input, works as audio encoder.
10. Support Audio digital gain.
11. Support firmware upgrade.
12. Support remote control via router port forward.
13. WiFi / POE version for option.
14. 1U/3U chassis available, supports 1-16Pcs Encoder inside.
Our Services
1. 1-Year Warranty.
2. Online, remote help.
3. Encoder Function customizes.
4. OEM & ODM welcomed.
Application
1. IPTV (Wowza, Nginx, Nimble Media Streaming Servers, etc.)
2. Online Live Broadcast ( YouTube, Facebook, Ustream, Twitter, etc.)
3. NVR (Network Video Recorder)
4. Recording System / Software
5. Digital Signage
6. Teaching / Campus Broadcast
7. Hotel TV system
8. Video Conference
HDMI Video Encoder
| Interfaces - HDMI Video Encoder | |
| Video Input | HDMI input, Max support 1920x1080P@60Hz |
| Audio Input | HDMI embed audio & External Analog audio input |
| Ethernet | 1000Mbps, RJ-45 |
| WiFi | Option 2.4G & 5.8G |
| Video Encoding | |
| Video Format | H.264/ AVC High/ Main Profile H.265/ HEVC main profile MJPEG/ JPEG baseline |
| Video Resolution | Max support 1920x1080P@60FPS |
| Video Bitrate | 0.1~32Mbps |
| Video FPS | 5-60FPS |
| Bitrate Control | VBR/ CBR |
| Streaming Protocols | HTTP/HTTPS / SRT / HLS / FLV / RTSP / RTMP(S) / UDP/ RTP (Unicast/ Multicast) ONVIF |
| Audio Encoding | |
| Audio Format | AAC/ AAC+/ AAC++/ MP3/ MP2/ AC3 G711 |
| Sample Rates | 44.1kHz/ 48kHz |
| Bitrate | 12~640kbps |
| System | |
| Control Method | Web based management - IP 192.168.1.168 |
| Language | Chinese-English control interface |
| Firmware | Ethernet software upgrade |
| Working environment | |
| Operating temperature | -10 to 70 deg C |
| Storage temperature | -20 to 80 deg C |
| Relative Humidity | 5% to 90% non-condensing |
| Miscellaneous | |
| Dimension (L × W × H) | 170*130*30mm |
| Approx weight | 300g |
| Power adapter | AC input 100-240V 50/ 60Hz DC output 12V 1A & POE (for option) |
OPR-NH100P HDMI Video Encoder firmware download - firmware end with A, such as 2.28A
AMBA chipset firmware link supports https-ssl web mangement and mDNS.
